Product Summary

The PIC16F1824-I/SL is a 14/20-Pin Flash Microcontroller with nanoWatt XLP Technology. The PIC16F1824-I/SL contains an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has Overflow and Underflow Reset capability. Direct, Indirect, and Relative Addressing modes are available. Two File Select Registers (FSRs) provide the ability to read program and data memory.

Parametrics

PIC16F1824-I/SL absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +9.0V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin, -40℃ ≤ TA ≤ +85℃ for industrial: 85 mA; (8)Maximum current out of VSS pin, -40℃ ≤ TA ≤ +125≤ for extended: 35 mA; (9)Maximum current into VDD pin, -40℃ ≤ TA ≤ +85℃ for industrial: 800 mA; (10)Maximum current into VDD pin, -40℃ ≤ TA ≤ +125℃ for extended: 30 mA; (11)Clamp current, IK (VPIN < 0 or VPIN > VDD): ±20 mA; (12)Maximum output current sunk by any I/O pin: 25 mA; (13)Maximum output current sourced by any I/O pin: 25 mA.

Features

PIC16F1824-I/SL features: (1)Analog-to-Digital Converter (ADC) module: 10-bit resolution, up to 12 channels; Auto acquisition capability; Conversion available during Sleep; (2)Analog Comparator module: Two rail-to-rail analog comparators; Power mode control; Software controllable hysteresis; (3)Voltage Reference module: Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels; 5-bit rail-to-rail resistive DAC with positive and negative reference selection.

Diagrams

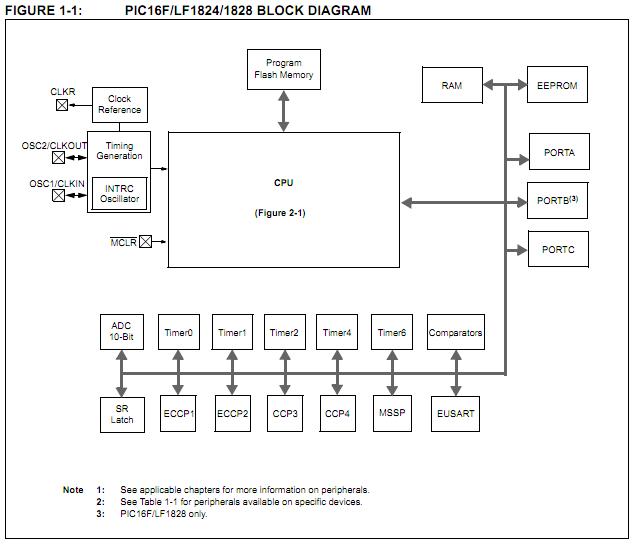

PIC16F1824-I/SL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F1824-I/SL
PIC16F1824-I/SL

Microchip Technology

8-bit Microcontrollers (MCU) 7 KB Flash 256b RAM 32 MHz Int. Osc

Data Sheet

0-1: $0.87
1-10: $0.70
10-25: $0.64
25-100: $0.58
